Product title: rectangular seawater filter - rectangular suction thick water filter
Specifications: BRS250 CB/t497-94 national standard right Angle seawater filter
Right rectangular water filter - right Angle right Angle suction water filter BRS250 CB/T497-94
CB/T497-1994 suction thick water strainer - Angle suction strainer - Angle suction strainer
Cbm1061-81 seawater filter - rectangular seawater filter - Angle seawater filter
Manufacturing unit: Yangzhou FieHang Ship Accessories Factory, Yangzhou airlines shipping Accessories Factory
About the right Angle Marine seawater filter, the seawater filter basic introduction:
In Marine Marine pipeline system, the rectangular seawater filter is a common accessory in the system, which is usually made of porous plate. Filter medium is its action, stop the circulation medium in a certain particle size within the scope of the impurities, ensure the corresponding valves, instruments and equipment to avoid being impurity jam, so as to ensure the safe operation of pipeline system.
Technical parameters of Marine right-angle seawater filter:
Type: type B (right Angle seawater filter) BR type (right right right Angle seawater filter) BRS type (left right right Angle seawater filter)
Nominal pressure: PN0.1MPA- PN6.4MPA
Nominal size: DN250
Applicable media; Water, fresh water
This type of right-angle seawater filter can be made from Q235A carbon steel or stainless steel 304 or stainless steel 316.
All rectangular seawater filter flanges are in accordance with the specified standard. The filter area shall be at least 2.6 times the area of the suction nozzle
The pressure of the filter of the Marine right-angle seawater filter shall be strictly controlled and sealed according to the above specifications, and the pressure shall not leak for at least 5 minutes
Each rectangular seawater filter should have air outlet and drain, and bolt to plug it
Notes on Marine seawater filters:
The nominal diameter of the right Angle seawater filter is determined first.
High - level seabed door rectangular seawater filter BS250 cbm1061-81 (JIS 5k-250a LB-Type Angle seawater filter)
Rectangular low sea door seawater filter BS250 CB/T497-94 (Angle seawater filter JIS 5k-250a LB- Type)
BS250 CB/T497-94 seawater cooling system rectangular seawater filter (copy JIS 10k-250a daily cylindrical corner seawater filter)
Host sea water pump inlet seawater filter BS250 CB/T497-94 (LB -Type auxiliary sea water pump inlet Angle Type seawater filter JIS 5k-250a)
The final determination of BRS (right right Angle) of Marine filter is determined.
On the material, the seawater filter of the ship's seawater pipeline can be chosen: carbon steel, stainless steel for manufacturing production.
DN250 carbon steel cold galvanizing thick water filter, carbon steel galvanized right Angle seawater filter
JIS 5k-250a hot galvanizing Angle type coarse water filter, hot galvanized Marine seawater filter right Angle
Cbm1061-81 stainless steel rectangular water filter, rectangular stainless steel thick water filter, stainless steel Marine seawater filter
Stainless steel rectangular coarse water filter, stainless steel cylindrical thick water filter JIS 5k-250a
Sincerely welcome customers at home and abroad to consult!
|

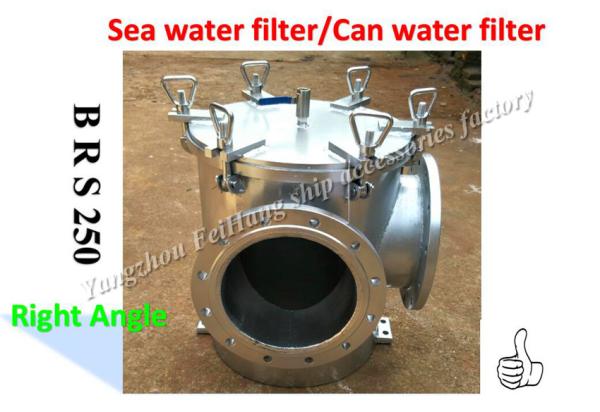

BRS250 CB/t497-94 national standard right Angle seawater filter Images
|
